Top 5 Mistakes When Buying a Skid Steer Door
Top 5 Mistakes When Buying a Skid Steer Door
The five mistakes that cost skid steer and compact track loader owners the most money are: ordering by model name instead of exact fitment, choosing the door by price instead of the job, putting a new windshield on a tired frame and seal, buying generic uncoated plastic, and botching the install. Each one is avoidable — here is how.
All prices listed are accurate as of October 2026 and may change over time. For current pricing, check the live product pages linked throughout this guide.
A skid steer door is a fitment part and a safety part at the same time. Get either side wrong and you pay for it twice.
In This Guide
Mistake #1: Ordering by Model Name Instead of Exact Fitment
The most common and most expensive skid steer door mistake is ordering by model name alone. "Bobcat T770" or "Kubota SVL75" is not enough information. Skid steer doors — the front cab door, windshield, or front glass — change by series, generation, model year, serial number, and factory door package. Two machines with the same name on the side can take different panels.
Here are real examples from machines we fit every week:
| Machine | The Fitment Trap | What to Confirm |
|---|---|---|
| Kubota SVL65-2 – SVL97-3 | The 1/2" front windshield is cut differently for 2022 & earlier machines vs. 2023 & later machines | Model year, plus replaces OEM glass V0621-34520 |
| Kubota SVL side windows | Side windows fit the -2 generation (SVL65-2, 75-2, 90-2, 95-2, 97-2) but are not compatible with SVL75-3 or SVL97-3 | Generation (-2 vs. -3) |
| Kubota SVL rear window | Separate rear windows for -2 models and -3 models | Generation (-2 vs. -3) |
| John Deere G Series | The 320G–333G uses a different windshield (OEM glass T344818) than the "small frame" 312GR–318G (OEM glass T361540, T401824, or polycarbonate T444081) | Exact model and frame size |
| John Deere E Series | Parts suppliers list both T312628 and T344818 door glass across E-Series serial ranges — our E-Series windshield comes in 2-hinge-hole and 4-hinge-hole versions | Count the hinge holes on your door |
| John Deere G factory forestry door | The replacement for Deere's forestry package door #T478319 only fits machines that already have that door | Your existing door/package number |
| Bobcat M Series (S450–T870) | Standard windshield replaces OEM glass 7120401. The 2-hole forestry windshield only fits machines already running Bobcat's 1/2" forestry windshield #7155308 with frame #7155359 — not machines with OEM glass | Whether you have factory glass or the factory forestry door |
Used doors are the same trap with less recourse. On HeavyEquipmentForums.com, one owner described buying a used Bobcat forestry door online for his A300 — once installed, the door would not fully close, left roughly a 1-inch gap at the top corner, and the latch pin sat about half an inch off. A door that "looks right" in photos can still be the wrong door.
The fix: before you order, write down your brand, model, generation or series, model year, serial number (PIN), and the OEM part number of the glass or panel you are replacing. Shop by series, not by brand — start with the right collection, such as Bobcat M Series (S450–T870) doors, John Deere 320G–333G doors, or Kubota SVL65–SVL97 doors. If anything doesn't match, call us before you order.
Mistake #2: Choosing the Door by Price Instead of the Job
The right skid steer door is set by the worst thing the machine will hit, not by the cheapest part number. Factory front doors on most skid steers and compact track loaders use tempered glass. Tempered glass is clear and scratch-resistant, but it does not flex — it shatters. That's fine for loading pallets. It's a bad bet behind a brush cutter, forestry mulcher, or grapple.
The opposite mistake is just as real: paying for maximum protection on a machine that moves feed and pushes snow. Match the door to the work:
| Door Material | Best For | Wrong Choice For |
|---|---|---|
| Tempered glass (OEM-style) | Light loading, snow, general farm work | Any attachment that throws debris |
| 1/4" polycarbonate | Light-duty work, ending repeat glass breakage | Brush cutting, mulching, demolition |
| 3/8" polycarbonate | General construction, moderate debris | Daily forestry and high-speed cutters |
| 1/2" polycarbonate | Brush cutting, forestry mulching, land clearing, demolition, rental fleets | Buyers only trying to match glass price |
| 3/4" laminated polycarbonate | Severe forestry work on machines with an OEM forestry door kit | Standard replacement-door situations |
For the full breakdown, read how thick a skid steer polycarbonate door should be and our comparison of polycarbonate vs. glass for skid steer windows.
Example: Bobcat M Series — Three Price Points, Three Jobs
Bobcat M Series Windshield Replacement Only
Fits Bobcat M Series S450–S850, T450–T870, and A770. Replaces OEM glass 7120401. Coated polycarbonate with milled edges and duplicated mounting holes. Hardware not included. Choose 1/2" if the machine runs a cutter.
View M Series Windshield →

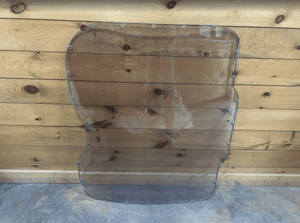

Bobcat M Series 3/4" Laminated Forestry Windshield
Replacement panel #7193293 for severe forestry work — but only for machines with Bobcat Forestry Door Kit #7326358. A perfect example of Mistake #1 and #2 together: the toughest option is useless if it doesn't match your door package.
View 3/4" Laminated Panel →Mistake #3: Putting a New Windshield on a Tired Frame and Seal
A new polycarbonate windshield is only as good as the door frame, seal, and hardware it mounts to. If the factory frame is bent, racked, or rusted, a new panel won't seal, won't latch cleanly, and will carry stress it was never meant to carry. The same impact that breaks the glass often bends the frame — an owner on HeavyEquipmentForums.com reported that a hidden piece of rebar shattered his Case SV340's door glass and also bent the door frame.
Before you buy a windshield-only panel, check three things:
- Frame: lay a straightedge across it and close the door. Gaps, a latch that has to be forced, or uneven contact with the cab all point to a frame problem.
- Door seal: a hardened, torn, or compressed seal lets dust, water, and noise into the cab. Replace it while the door is apart.
- Hardware: many windshield-only panels ship without hardware. Know what you're reusing and what you need to buy.
When the Frame Is the Problem
Heavy-Duty Front Door Frame & Polycarbonate Windshield Kit — Kubota SVL
3/4" solid steel frame (vs. the factory 16-gauge design) with a 1/2" polycarbonate windshield, metal retainers, hardware, and weather stripping. Reuses your rollers, latch, and wiper. Fits SVL65-2, SVL75-2, SVL75-3, SVL90-2, SVL95-2, SVL97-2 & SVL97-3 — enclosed cab only. The frame alone is available if you already have a windshield.
View SVL Door Kit →

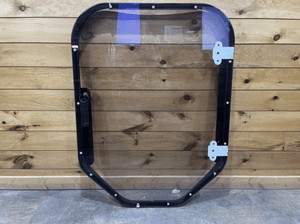

Bobcat M Series Frame & Windshield Replacement
Heavy-duty door package: 12-gauge steel frame, 1/2" polycarbonate (clear or 50% tint), 1/4" steel hinges, and an installation hardware kit. Reuses the OEM handle, latch, and wiper.
View M Series Frame Kit →John Deere owners have the same option: the John Deere G Series frame & windshield replacement ($1,649.00) for the 320G–333G.
Don't Forget the Seal

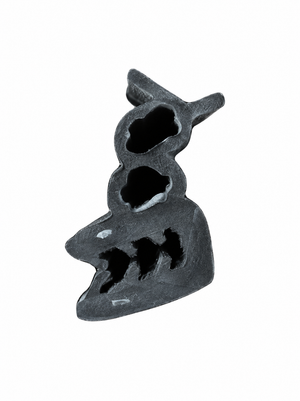

John Deere Skid Steer Door Seal
Fits John Deere D, E, G, G/P small-frame, and P Series doors with milled polycarbonate or glass. We also carry seals for Bobcat, Caterpillar, and Wacker Neuson — note the Bobcat M Series seal (#7281063) is not compatible with Bobcat's 3/4" forestry package.
View Door Seal →Mistake #4: Buying Generic, Uncoated Plastic — Then Treating It Like Glass
A flat sheet of polycarbonate from a plastics shop is not a skid steer door. A proper replacement windshield duplicates the OEM shape and mounting holes, has milled edges so the factory seal and hardware fit, and carries a hard coat on both faces. Skip any of those and you get a door that leaks, rattles, cracks at the holes, or fogs over with scratches.
Polycarbonate is far tougher than glass under impact, but its surface is softer. Uncoated sheet scratches quickly in dust, mud, and brush, and a door you can't see through is its own safety problem. Look for a scratch-resistant, UV-protected coating — and confirm the hole pattern matches your OEM part number.
| Feature | Generic Flat Sheet | Machine-Specific Polycarbonate Door |
|---|---|---|
| Shape & hole pattern | You cut and drill it | Duplicates the OEM glass and mounting holes |
| Edges | Raw cut | Milled to accept the factory door seal |
| Surface | Often uncoated — scratches fast | Scratch-resistant, UV-protected coating |
| Fitment | Trial and error | Tied to OEM part numbers and model lists |
Clean It Like Polycarbonate, Not Glass
Once it's installed, the fastest way to ruin a coated polycarbonate windshield is to treat it like glass. Lexan manufacturer cleaning guidance comes down to this:
- Do: wash with mild soap and lukewarm water using a soft cloth or sponge, then rinse.
- Don't: use abrasive or highly alkaline cleaners, steel wool, or scrub brushes.
- Don't: scrape with razor blades, squeegees, or sharp tools.
- Don't: use gasoline, acetone, or benzene on the panel.
- Don't: clean it in direct hot sun.
Mistake #5: Botching the Installation
Most polycarbonate door failures after install come from three things: a dirty bond surface, the wrong adhesive, or bolts that don't let the panel move. The right door installed wrong will still fail.
One HeavyEquipmentForums.com post shows all of it. A contractor installed a custom 1/2" Lexan panel in his Case SV340 frame with tape. After a few weeks of vibration it pulled loose, so he drilled it and bolted it tight with twenty 1/4" bolts and no rubber washers. The next day hit about 100°F, the panel expanded, and it cracked at nearly every hole.
Polycarbonate Moves — Plan for It
Polycarbonate sheet has a linear thermal expansion of roughly 6.6 × 10⁻⁵ per °C. On a door panel about 41.5 inches wide (the size of the Kubota SVL front glass), a 100°F temperature swing works out to about 0.15 inches of growth across the panel. Clamp it rigidly at every hole and that movement has nowhere to go but into cracks.
- Use the factory hole pattern. Don't drill new holes in a finished panel. If you must drill, polycarbonate fabrication guides call for oversized holes and keeping holes at least two hole-diameters from the edge.
- Tighten to seal, not to crush. Fasteners should hold the panel, not distort it.
- Use real adhesive, not hardware-store double-stick. 3M VHB tape or primerless urethane — both bond and seal properly when the surface is prepped.
- Prep and wait. Surfaces must be clean and dry. With VHB 5952, clamping is strongly recommended and full bond strength takes 72 hours. Urethane needs setup and cure time before the machine goes back to work.
Kubota SVL windshield install using the urethane method. The same prep rules apply to any bonded skid steer door.

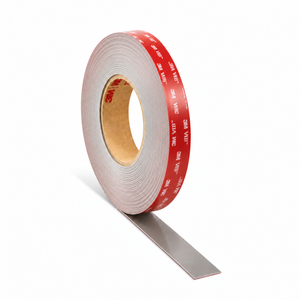

3M VHB 5952 Double-Sided Tape
High-strength mounting tape for bonding polycarbonate doors and windshields to metal frames. Clean, dry surfaces required; clamping strongly recommended; full bond strength after 72 hours.
View 3M VHB Tape →Install videos for John Deere G Series, Kubota SSV, and Kubota SVL doors — plus seal guides — are on our skid steer door installation page.
Pre-Order Checklist: What to Have Before You Buy
Have these answers before you order any skid steer door, windshield, or cab window:
| Item | Why It Matters |
|---|---|
| Brand & exact model | Gets you to the right family (e.g., Bobcat T770, Kubota SVL97-3) |
| Series / generation | Bobcat G vs. M vs. R; Kubota -2 vs. -3; Deere D, E, G, or P |
| Model year & serial number (PIN) | Panels and hole patterns change mid-run |
| OEM part number of the current glass or panel | The single best fitment check |
| Current door type | Factory glass, factory forestry door, or aftermarket — they take different parts |
| Frame and seal condition | Decides windshield-only vs. full frame kit |
| Attachments you run | Decides glass vs. 1/4", 3/8", 1/2", or laminated |
How to Choose the Right Skid Steer Door
Once fitment is locked in, the decision is simple. Match your situation:
| Your Situation | Right Choice |
|---|---|
| Light work, good frame, glass broke once | 1/4" polycarbonate windshield-only |
| Brush cutter, mulcher, or demolition | 1/2" polycarbonate windshield |
| Bent, racked, or rusted frame | Frame & windshield kit |
| Machine has a factory forestry door | Replacement panel matched to that OEM forestry part number |
| Long sun-facing days | Tinted polycarbonate — same thickness you'd pick for the job |
| Seal is torn or hard | Add a new door seal to the order |
And remember the rest of the cab. Debris finds side and rear glass too — see our Kubota SVL windshield & door buyer's guide for a full-cab example, and why your skid steer door keeps breaking if you're on your second or third replacement.
Get the Right Door the First Time
Send us your model, serial number, and current glass part number — we'll confirm fitment before you order.
Shop Skid Steer Doors → Confirm My FitmentFAQ: Buying a Skid Steer Door
What is the biggest mistake when buying a skid steer door?
Ordering by model name alone. Skid steer doors change by series, generation, model year, serial number, and factory door package. Confirm the OEM part number of the glass or panel you're replacing before you order.
Are skid steer doors universal?
No. Even within one brand, door glass and windshields differ by series and serial range — for example, the John Deere 320G–333G (OEM glass T344818) uses a different windshield than the 312GR–318G small-frame machines.
Will a Kubota SVL75-2 door fit an SVL75-3?
The front windshield covers both -2 and -3 SVL models, but it's offered by model year (2022 & earlier vs. 2023 & later). The SVL side windows fit -2 models only, and the SVL rear window comes in separate -2 and -3 versions.
Can I put a new polycarbonate windshield on a bent door frame?
You can, but it usually won't seal or latch right, and the panel carries stress it shouldn't. If the frame is bent, racked, or rusted, buy a frame & windshield kit instead.
Can I make my own skid steer door from a sheet of Lexan?
It's possible, but it's usually a false savings. A flat sheet lacks the OEM hole pattern, milled edges for the seal, and the scratch-resistant coating. Hand-drilled holes that are too tight are a common crack point.
Why did my polycarbonate door crack at the bolt holes?
Usually because the panel was bolted too tight with no room to expand. Polycarbonate grows with heat — about 0.15" across a 41.5" panel over a 100°F swing. Use the factory hole pattern, don't overtighten, and avoid drilling new holes.
Do I need a new door seal with a new windshield?
If the old seal is hard, torn, or flattened, yes. Many windshield-only panels let you add a seal at checkout. Check compatibility — the Bobcat M Series seal, for example, is not compatible with Bobcat's 3/4" forestry package.
How do I clean a polycarbonate skid steer windshield?
Mild soap, lukewarm water, and a soft cloth. Never use abrasive or highly alkaline cleaners, razor blades, gasoline, or acetone, and don't clean it in hot sun.
What if I order the wrong skid steer door?
Unused items can be returned within 30 days of shipment with an approved RMA, but returns may carry a 10–20% restocking fee and you pay return shipping. Installed or used parts aren't returnable except under warranty. See the full returns policy.
My machine isn't listed. Can you still help?
Yes. Request a quote or contact us with your model, serial number, and current glass part number.
The Bottom Line
Buying a skid steer door goes wrong in predictable ways: wrong fitment, wrong material for the job, a tired frame or seal, generic plastic, and a rushed install. Confirm your series, serial number, and OEM part number first. Then match thickness to your worst job, fix the frame and seal if they're shot, buy a machine-specific coated panel, and install it so it can move. Do that and you'll buy the door once.
