Wacker Neuson ST/SW Windshield Replacement Only - Clear

Wacker Neuson ST/SW Windshield Replacement Only - Clear

Fits the following Wacker Neuson models:
Tracked Skid Steers: ST27, ST28, ST31, ST37, ST45, ST50
Wheeled Skid Steers: SW16, SW17, SW20, SW21, SW24, SW28, SW32

OEM Glass Compatibility
This polycarbonate door is designed to replace machines originally equipped with one of the following OEM glass numbers:

1000440928 • 1000340107
🔍 OEM glass numbers are typically etched directly on the factory glass.
**Only available in 1/2" polycarbonate**
Not sure which glass you have? Contact us before ordering and we’ll help confirm fitment.
Quantity
Regular price $983.99 USD
Regular price Sale price $983.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Installation

We don’t have an installation video yet — a step-by-step time-lapse is coming soon! ⏳

Product Description

🚜 Wacker Neuson ST & SW Polycarbonate Windshield Replacement

Give your Wacker Neuson skid steer a serious upgrade with our 1/2″-thick polycarbonate windshield, available in clear or 50% tint. Designed to follow OEM form and fit, this panel delivers outstanding durability, visibility, and operator protection.

This aftermarket windshield is built as a direct-fit replacement for the factory glass on the following models:

  • Tracked skid steers: ST27, ST28, ST31, ST37, ST45, ST50
  • Wheeled skid steers: SW16, SW17, SW20, SW21, SW24, SW28, SW32

It cross-references the OEM glass part numbers below. Be sure to match both your machine’s serial number and current glass number:

  • For serial numbers WNCS0506ZPUM01896 and higher, select glass #1000440928.
  • For serial numbers WNCS0506ZPUM01895 and lower, select glass #1000340107.

⚠️ Important:
Always confirm your machine serial number and the OEM glass number before ordering. ⚠️

Why Choose Our Wacker Neuson Polycarbonate Windshield?

  • Manufactured from Lexan / optical-grade polycarbonate in clear or 50% tinted options for excellent clarity.
  • Engineered for high impact resistance—up to 250× stronger than glass.
  • Hard-coated on both sides to help resist scratching and extend service life.
  • Uses OEM-style mounting hole locations to provide a straightforward, drop-in installation.
  • Clean, milled edges make it easy to transfer and reuse your existing hardware.
  • Helps reduce noise and improve comfort with better light control, reduced heat gain in summer, and improved insulation in colder weather.
  • Directly replaces the factory glass or existing polycarbonate windshield.

Note: Mounting hardware is not included with this kit. This panel is an aftermarket replacement and is not manufactured by Wacker Neuson, but is designed to be a direct-fit alternative to your OEM glass or polycarbonate windshield.

Compatibility

Heavy-Duty Polycarbonate Windshield – Wacker Neuson ST & SW Series

Designed as a premium replacement for the OEM front glass, this 1/2″ polycarbonate windshield offers outstanding clarity, strength, and long-term durability. Ideal for operators wanting maximum protection in forestry, excavation, and all high-impact environments.

📋 Fits These Wacker Neuson Models

Tracked Units:

  • ST27, ST28, ST31, ST37, ST45, ST50

Wheeled Skid Steers:

  • SW16, SW17, SW20, SW21, SW24, SW28, SW32

🔧 OEM Cross-Reference & Serial Notes

This polycarbonate panel replaces #1000440928 or #1000340107
depending on your serial number:

  • WNCS0506ZPUM01896 and above → Use OEM #1000440928
  • WNCS0506ZPUM01895 and below → Use OEM #1000340107

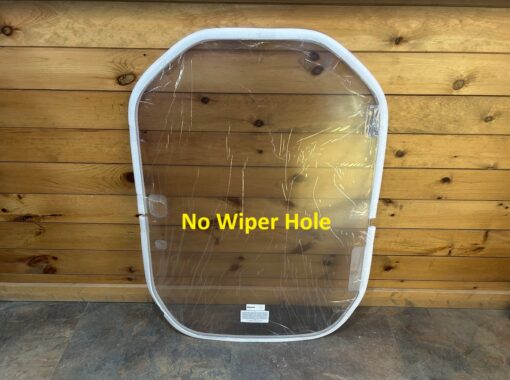

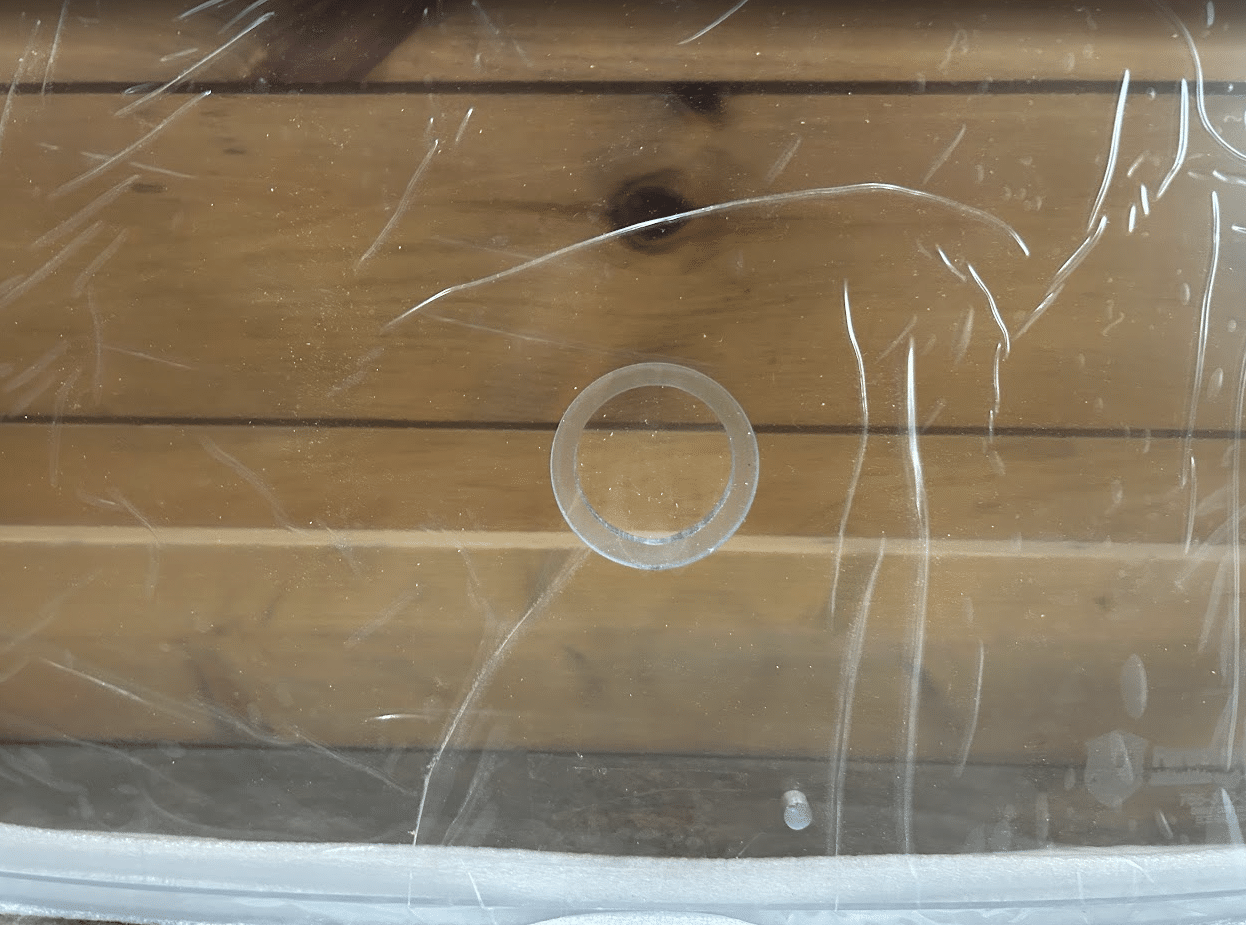

    ⚠️ Note: This earlier serial range does not include an option for a wiper motor hole.

Please verify both the machine serial number and existing glass number before ordering.

✔️ Manufactured from optical-grade polycarbonate that is up to 250× stronger than glass, this windshield is engineered to handle flying debris, harsh job sites, and constant vibration—making it a major upgrade over OEM glass for safety and performance.

Warranty

LIMITED WARRANTY

If the windshield/window (i) breaks, (ii) incurs coating failure, (iii) exhibits excessive increased haze, or (iv) exhibits excessive yellowing or loss of light transmission—each within ten (10) years from the date of sale due to manufacturing defect and subject to the definitions and conditions set forth herein—the purchaser will receive a free replacement windshield/window, provided the failed windshield/window, original sales receipt, and this warranty are returned to the original dealer. If a replacement windshield/window cannot be provided within fourteen (14) days, the manufacturer may opt to refund the original windshield/window purchase price.


CONDITIONS

This warranty applies only when the windshield/window is used in flat vertical architectural glazing, excluding transportation, outdoor recreational, and off-road vehicle applications. The product must be cleaned according to recommended guidelines (see reverse side for cleaning instructions). This warranty does not cover (re)installation expenses or any other direct or indirect loss(es) resulting from windshield/window failure.

Breakage: The warranty against breakage applies only to a windshield/window fabricated, installed, and cleaned according to recommendations. The windshield/window is substantially stronger than acrylic and resists impact, abuse, and vandalism. However, no material can be described as unbreakable, as all use cases cannot be accounted for.

Coating Failure: The warranty covers coating failure when the abrasion-resistant surface treatment visibly flakes or loses adhesion to the substrate sheet, detectable without instruments.

Abrasion Resistance: The windshield/window will not exhibit an increase in haze of more than 15%.
Test Criteria: The sample as manufactured shall be abraded per ANSI Z26.1 (Taber Abrader, Test No. 17) for 100 cycles with a 500g load.

Yellowing and Light Transmission: This applies only to clear, transparent windshield/windows.

  • The Yellowness Index (YI) shall be less than 5.0 within five years and less than 10 within ten years from sale date, per ASTM D1925 (1977), as measured with a Gardner Colorimeter.

  • Light transmission loss shall not exceed 5% within five years and 7% within ten years, per ASTM D1003 testing protocols.

  • This warranty does not cover yellowing or light transmission losses due to dirt, atmospheric deposits, abrasion, or physical changes unrelated to material degradation. Regular cleaning reduces, but does not prevent, this effect.

This warranty does not apply to hazing caused by physical abuse or improper cleaning methods.


LIMITATION OF LIABILITY

The warranties stated herein are the only warranties provided and are in lieu of all other warranties—written or oral, statutory, expressed or implied—including any warranty of merchantability or fitness for a particular purpose.

The manufacturer shall not be liable for special, consequential, or incidental damages arising from use or application of the windshield/window, whether the claim is based on warranty, contract, tort, or other legal theory. Liability shall not exceed the original purchase price of the product.

The remedies described are the purchaser’s sole and exclusive remedies.

Key Features

  • ½″ Optical-Grade Polycarbonate (Lexan®) construction for superior clarity and strength
  • Available in Clear or 50% Tinted options
  • Dual-Sided Coating provides enhanced resistance to scratches and abrasion
  • Impact Strength: up to 250× stronger than glass—won’t crack, chip, or shatter
  • OEM-Compatible Fit — matches factory mounting holes for easy, direct replacement
  • Precision-Milled Edges allow quick, clean installation of door hardware
  • Comfort Upgrade: reduces noise, minimizes heat gain in summer, and retains warmth in winter
  • High Light Transmission improves visibility and operator awareness
  • Safety First: eliminates risks of broken glass for a safer cab environment
