John Deere Cab Door Upper Glass – Replaces OEM #FYD00006274

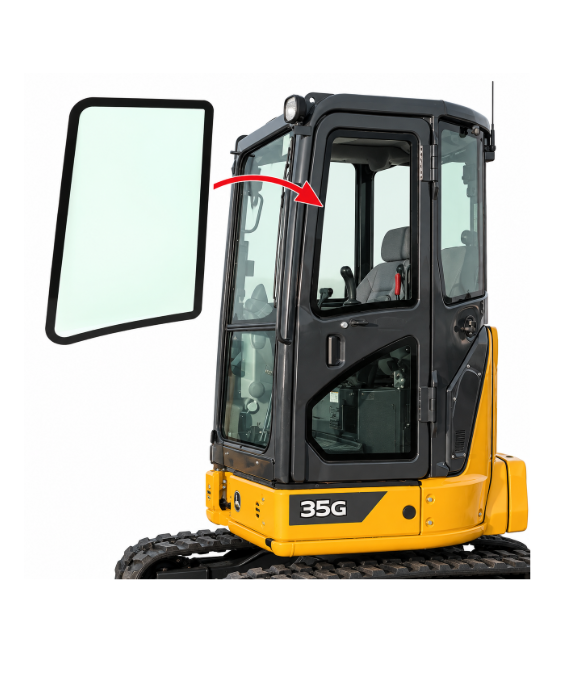

This is an aftermarket replacement for the upper glass panel in the cab door of John Deere 26G and 35G compact (mini) excavators, replacing OEM part #FYD00006274. It is the large top pane of the operator's door, above the separate lower door glass (FYD00006276).
The panel is 4 mm green-tinted tempered safety glass, DOT certified, with no mounting holes. It is tapered: 515 mm (20.28") at its widest, 430 mm (16.93") at its narrowest and 705 mm (27.76") high. Published shipping weight is about 15 lb.
Fits the following John Deere models:
G Series: 26G, 35G
OEM Replacement
Replaces John Deere OEM Glass #FYD00006274
Product Features
- Glass Type: Tempered safety glass (not polycarbonate)
- Thickness: 4 mm (0.16")
- Width: 515 mm (20.28") max / 430 mm (16.93") min — tapered
- Height: 705 mm (27.76")
- Tint: Green Tint
- Certification: DOT certified
- Mounting Holes: None
- Location: Upper Cab Door Window
- Condition: New aftermarket replacement glass
Tempered Glass vs. Polycarbonate
This is tempered safety glass — the same material type the factory installs, not a polycarbonate substitute. Glass holds up to wipers, dust and cleaning far better than polycarbonate and stays clear for years. If it is broken, tempered glass crumbles into small, blunt pieces instead of large shards. For forestry mulching, demolition or other work with flying debris, see our impact-resistant polycarbonate options in the John Deere excavator collection.
Installation Information
This is the glass panel only. The seal, door frame & hardware are not included — reuse your existing parts if they are in good condition or source new ones separately. Installer guides for John Deere excavator glass recommend two people for the job and setting removed glass on foam, wood or blankets rather than concrete.
What's Included
- (1) John Deere cab door upper glass panel, OEM #FYD00006274 replacement
Not Included: seal, door frame & hardware.
Frequently Asked Questions
Why is the 26G / 35G upper door glass wider at one end than the other?
It is a tapered pane, not a rectangle. Sellers list it at 515 mm (20.28") at its widest, 430 mm (16.93") at its narrowest and 705 mm (27.76") tall, so measure both the wide and narrow edges of your old glass when comparing.
Will FYD00006274 fit a John Deere 30G?
Parts sellers list this pane only for the 26G and 35G. Deere's G-Series mini excavator brochure says the 30G shares its operator's station (cab or canopy) with the 35G, so call 765-310-3053 with your serial number and we will confirm before you order.
What are the part numbers of the other glass panes in the 26G / 35G cab?

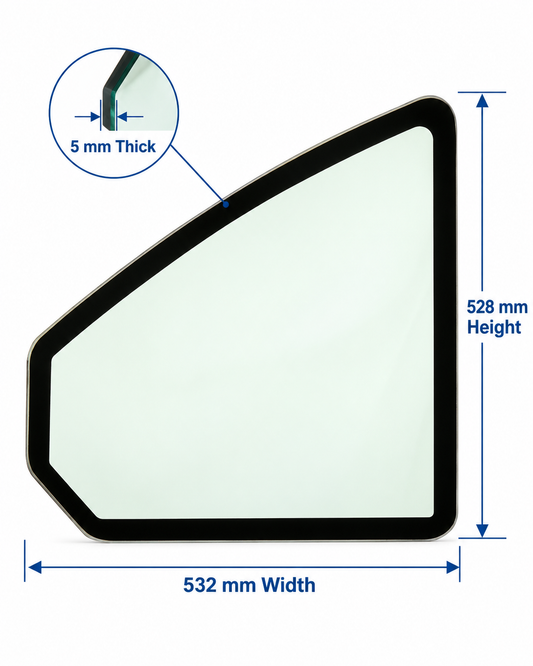

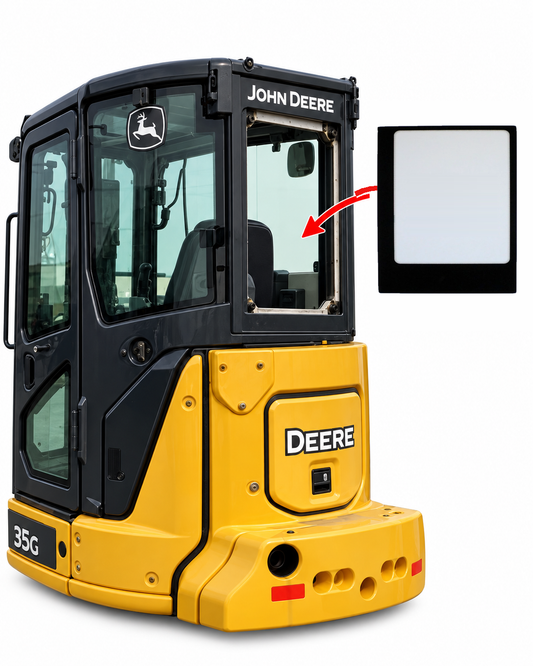

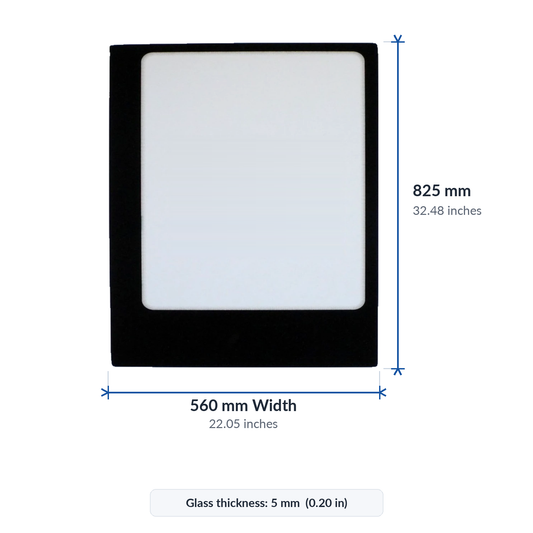

Aftermarket listings for the same cab show the front upper windshield as FYD00006271, front lower as FYD00006272, lower door as FYD00006276, left front side as FYD00006278, left rear side as FYD00006280 and rear window as FYD00006282. This listing, FYD00006274, is the upper door pane only.
Does a canopy-model 35G use this door glass?
No. This pane is only for machines with the enclosed cab. Deere's 35G spec sheet lists the canopy as standard and the ROPS/TOPS/FOPS cab with heater and air conditioning as an option.
If I bond the glass with urethane, how long before my 35G can go back to work?
PartsOnline's John Deere excavator glass guide, demonstrated on a 35G, says to let urethane cure 12–24 hours before returning the machine to service and to follow the adhesive maker's guidelines. The same guide warns never to mix urethane and silicone.
Please Verify Fitment Before Ordering
Confirm OEM part number FYD00006274 using your machine's serial number, and compare your existing glass with the listed size and photos. Questions? Call 765-310-3053.
John Deere® is a registered trademark of Deere & Company. Forestry Doors is not affiliated with John Deere; OEM numbers are listed for cross-reference only.
