John Deere Cab Door Lower Glass – Replaces OEM #FYD00006276

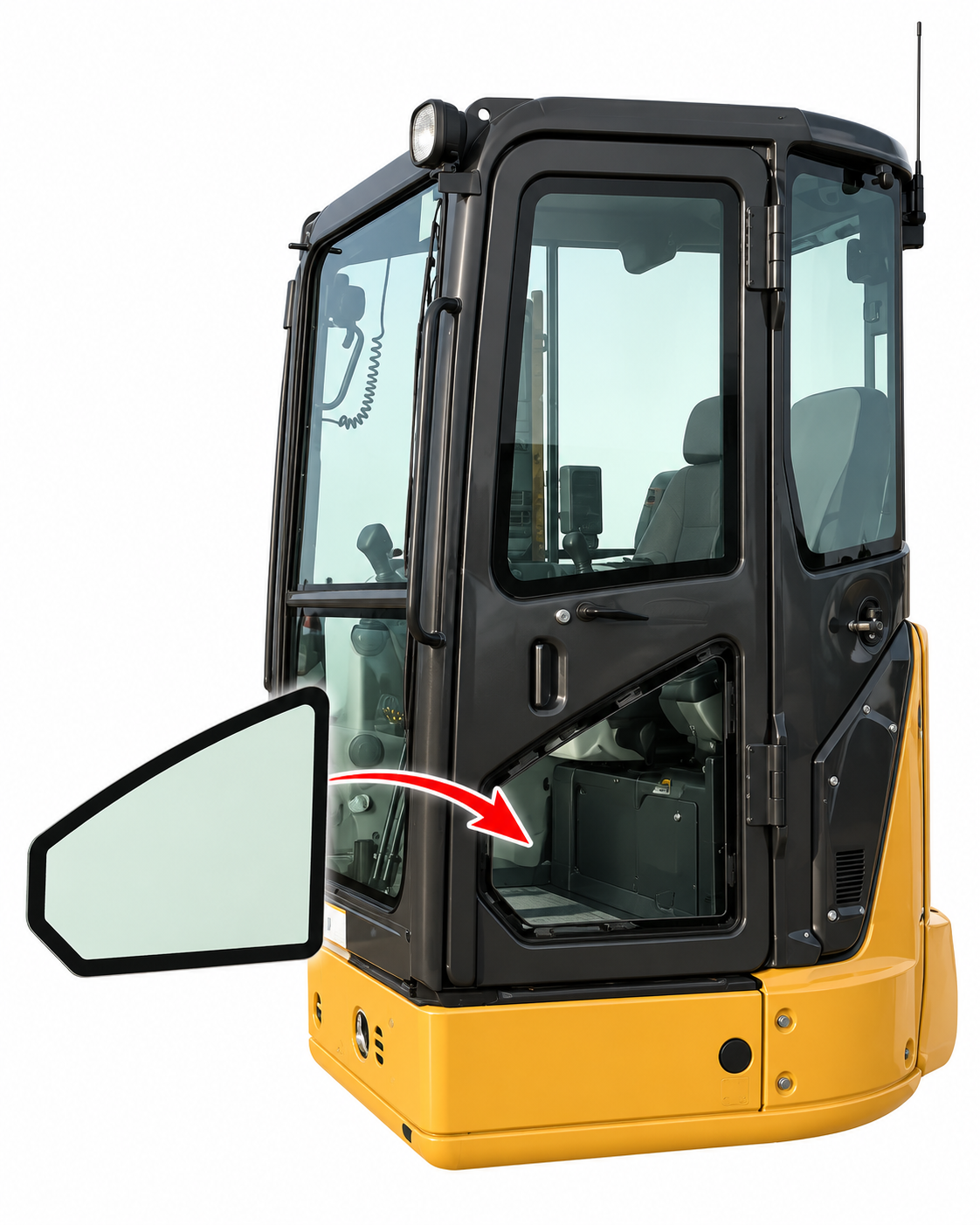

This is an aftermarket replacement for the lower glass panel in the cab door of John Deere 26G and 35G compact (mini) excavators, replacing OEM part #FYD00006276. It sits below the separate upper door pane in the operator's door.

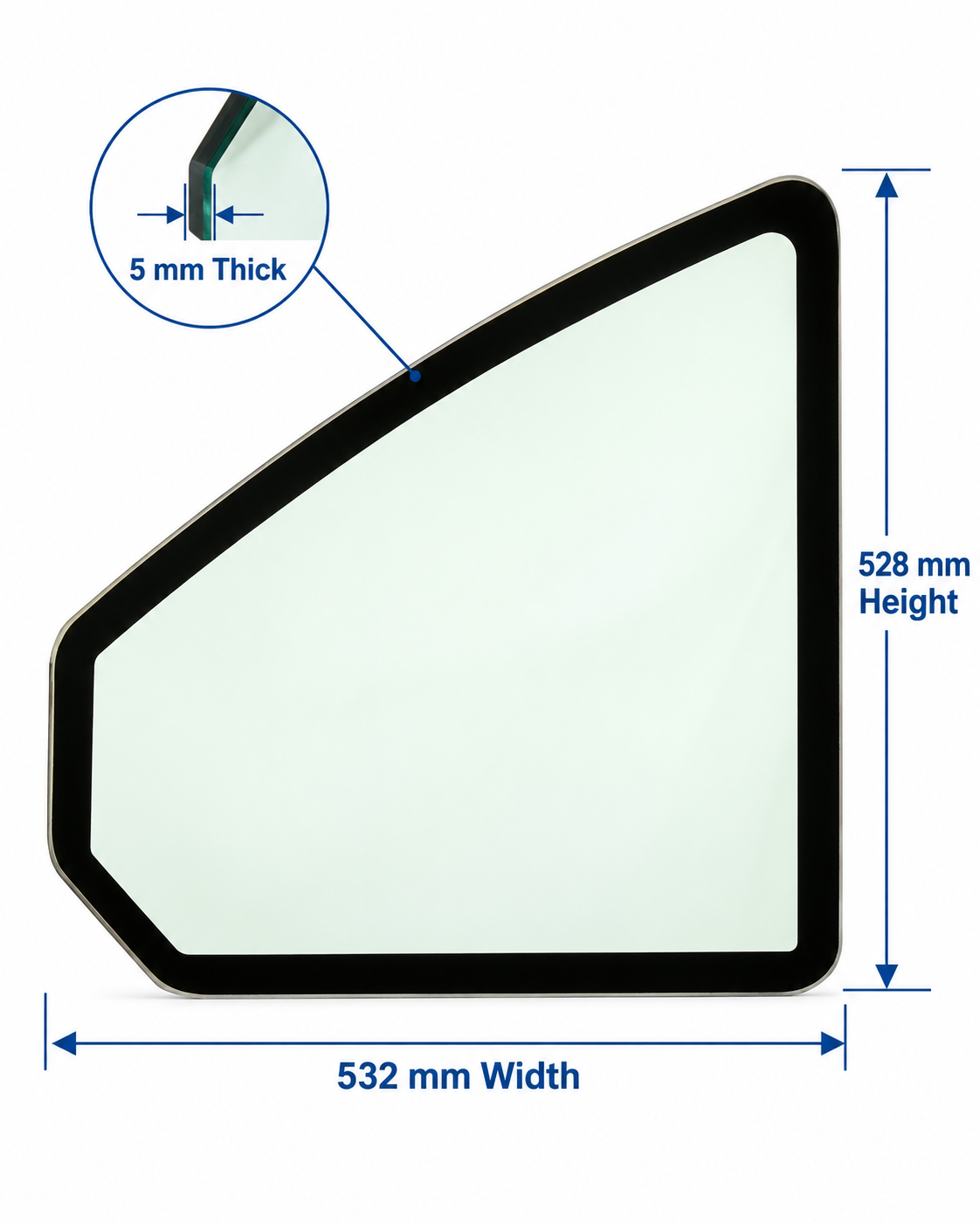

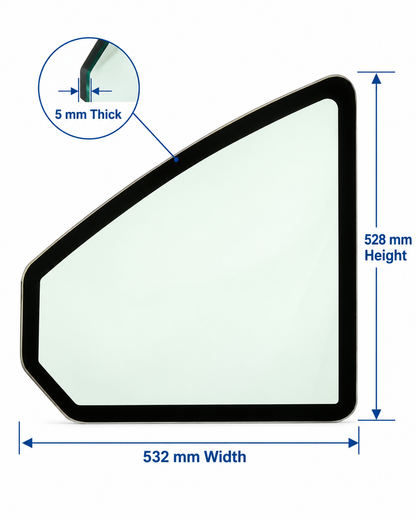

The panel is 5 mm green-tinted tempered safety glass, DOT certified, measuring approximately 535 mm wide × 530 mm high (21.06" × 20.87") with no mounting holes. Shipping weight is about 4.26 lb.
Fits the following John Deere models:
G Series: 26G, 35G
OEM Replacement
Replaces John Deere OEM Glass #FYD00006276
Product Features
- Glass Type: Tempered safety glass (not polycarbonate)
- Thickness: 5 mm (0.197")
- Width: 535 mm (21.06")
- Height: 530 mm (20.87")
- Tint: Green Tint
- Certification: DOT certified
- Mounting Holes: None
- Location: Lower Cab Door Window
- Condition: New aftermarket replacement glass
Tempered Glass vs. Polycarbonate
This is tempered safety glass — the same material type the factory installs, not a polycarbonate substitute. Glass resists scratching from wipers, dust and cleaning far better than polycarbonate and stays clear over years of use. If it is broken, tempered glass crumbles into small, blunt pieces instead of large shards. For forestry mulching, demolition or other work with flying debris, consider our impact-resistant polycarbonate options in the John Deere excavator collection.
Installation Information
This is the glass panel only. The seal, door frame & hardware are not included — reuse your existing parts if they are in good condition or source new ones separately.
What's Included
- (1) John Deere cab door lower glass panel, OEM #FYD00006276 replacement
Not Included: seal, door frame & hardware.
Frequently Asked Questions
Which part of the 26G / 35G cab door is FYD00006276?
It is the lower pane of the operator's cab door. Aftermarket parts listings for the same cab show the upper door pane as a separate part, FYD00006274.
How is this lower door glass different from the upper door glass FYD00006274?
Sellers list the lower pane at 5 mm thick, about 535 × 530 mm and roughly 4.3 lb, while the upper door pane FYD00006274 is listed at 4 mm and about 515 × 705 mm. The two are not interchangeable.
How do I hold the cab door open while the glass is out?
Hitachi's ZAXIS30U-5N operator manual (the matching Hitachi cab for this series) says to open the door all the way until it locks into the latch on the side of the cab; the door lock release lever is at the left side of the operator's seat.
Is the cab door the emergency exit on these mini excavators?
The ZAXIS30U-5N operator manual lists the door as the first way out. If it cannot be used, open the upper front window; if that fails, break the front window with the emergency evacuation tool at the cab rear, and failing that the rear window.
Can I add screens to protect the glass on my 35G?
John Deere's 35G/50G/60G brochure lists optional front cab screens and an optional rear secondary exit kit for the cab, which is ROPS/TOPS/FOPS certified.
Please Verify Fitment Before Ordering
Confirm OEM part number FYD00006276 using your machine's serial number, and compare your existing glass with the listed size and photos. Questions? Call 765-310-3053.
