Caterpillar D Series Frame & Windshield Replacement

Caterpillar D Series Frame & Windshield Replacement

COMPATIBILITY

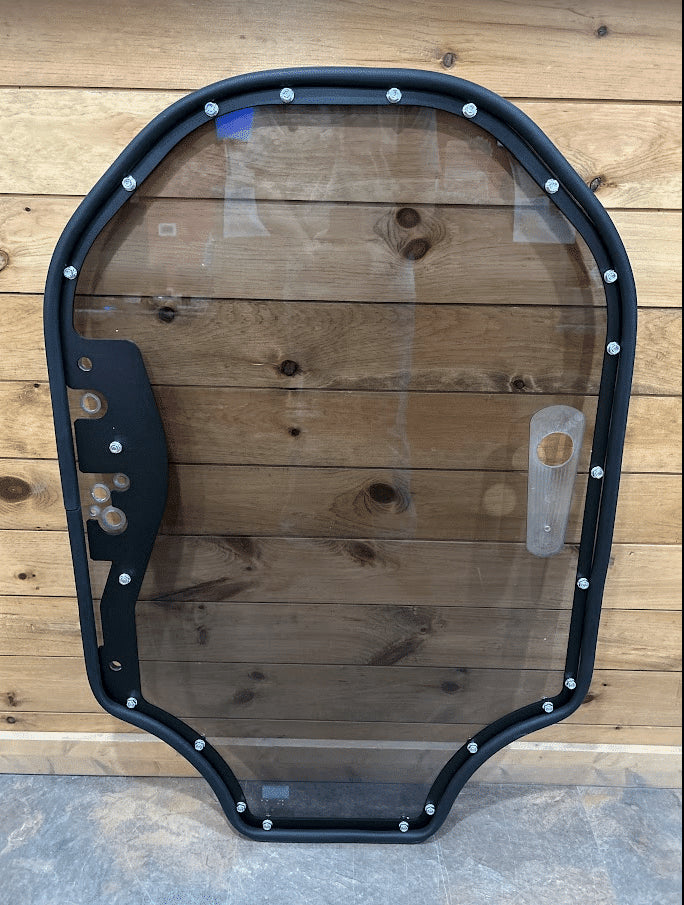

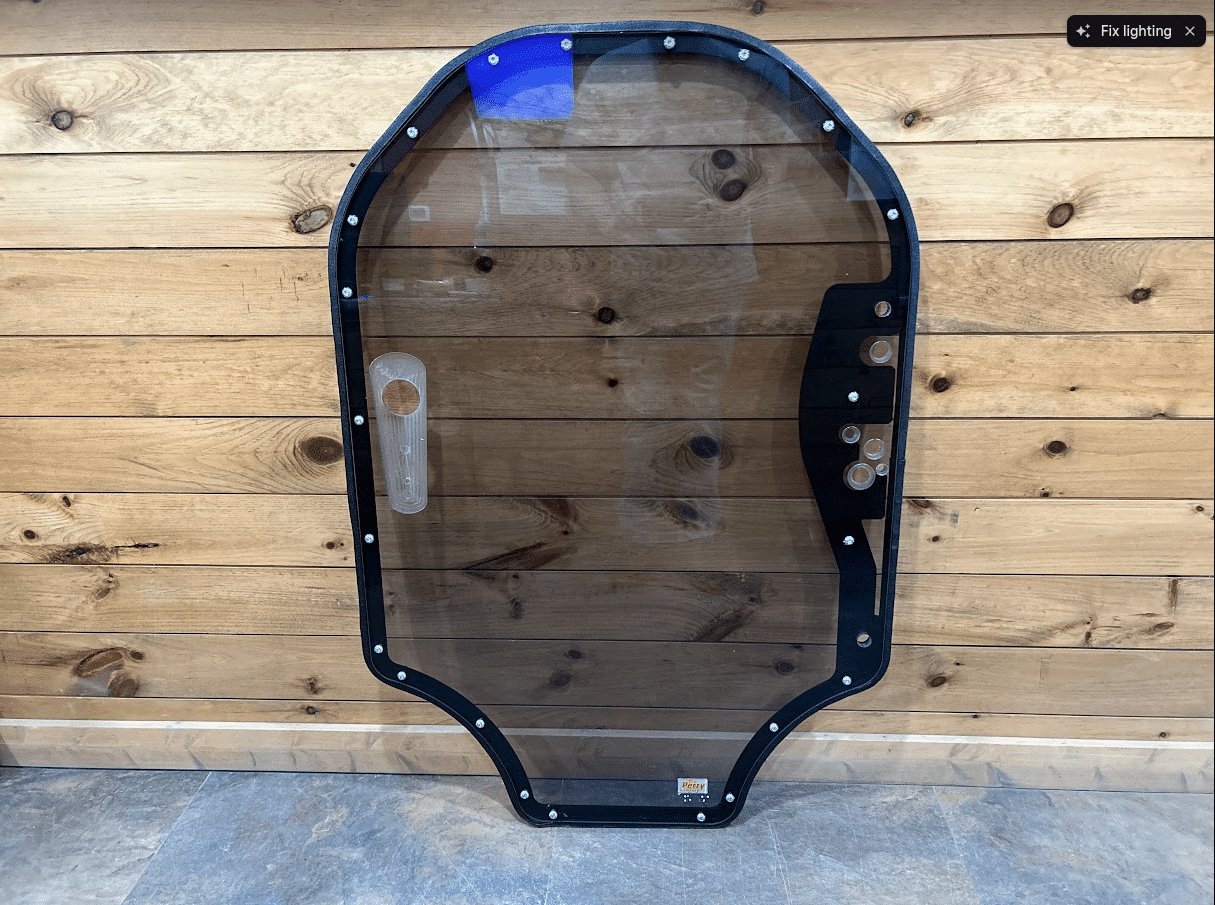

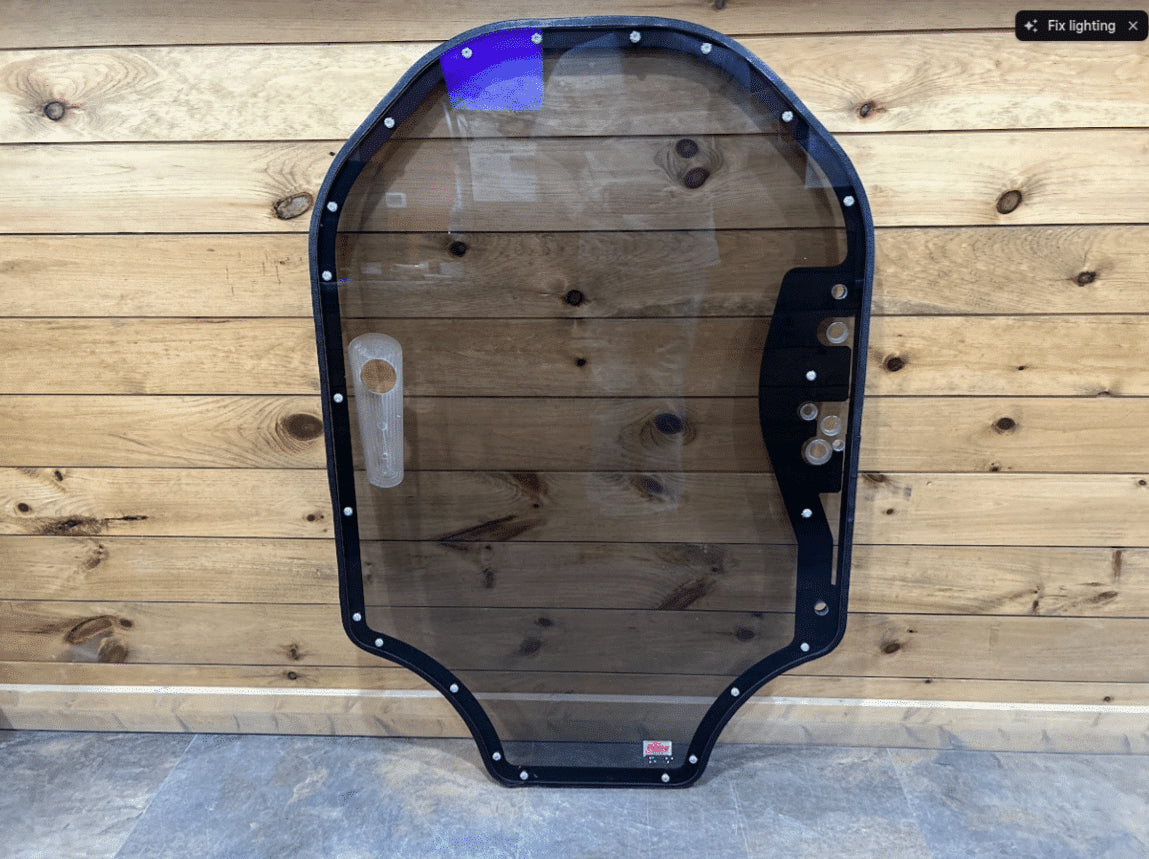

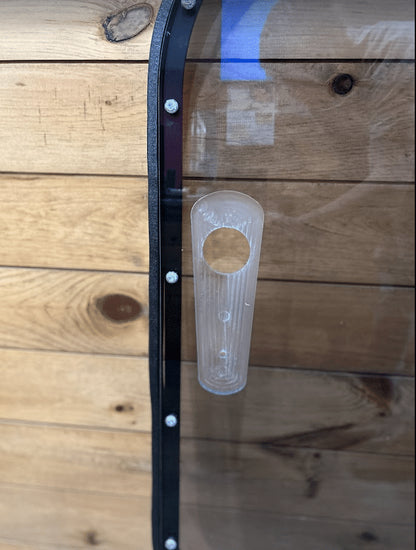

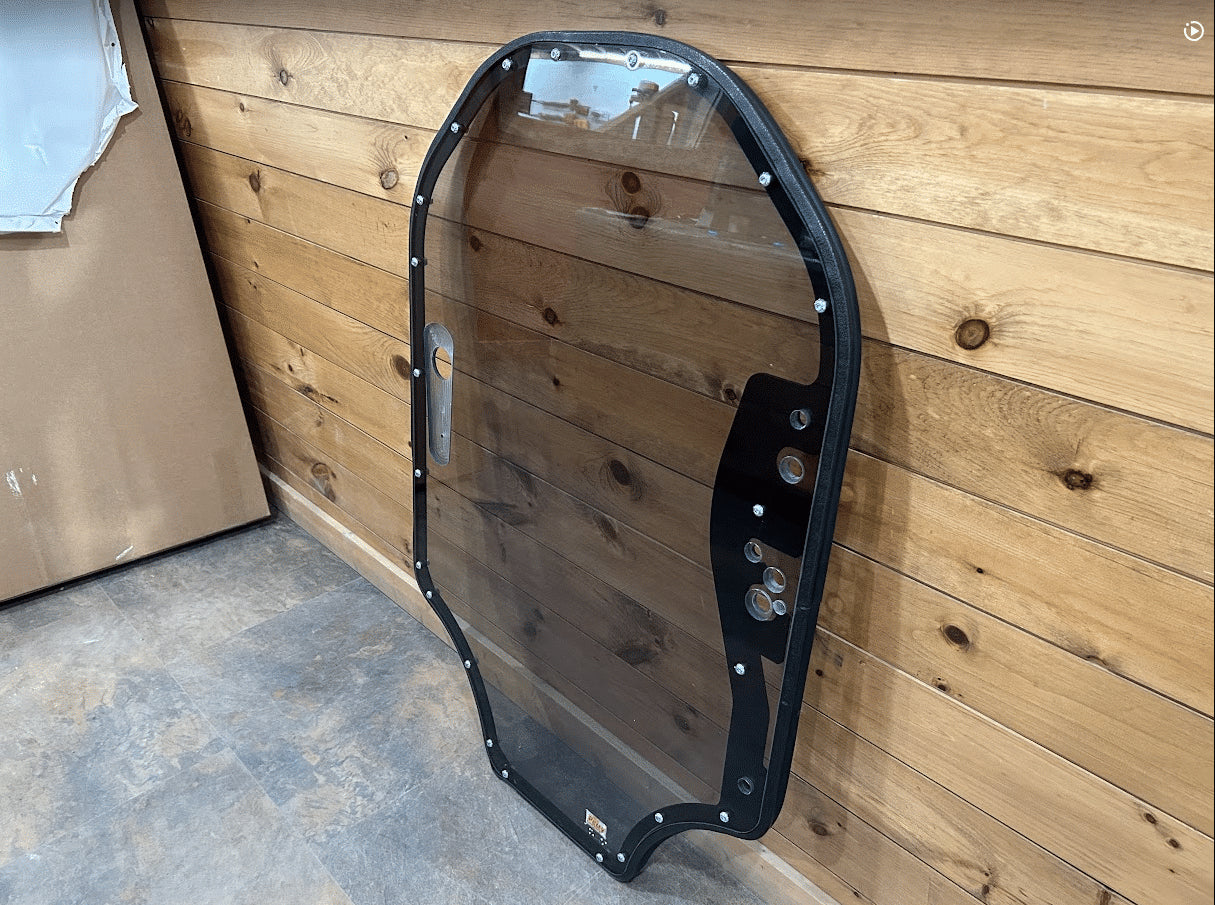

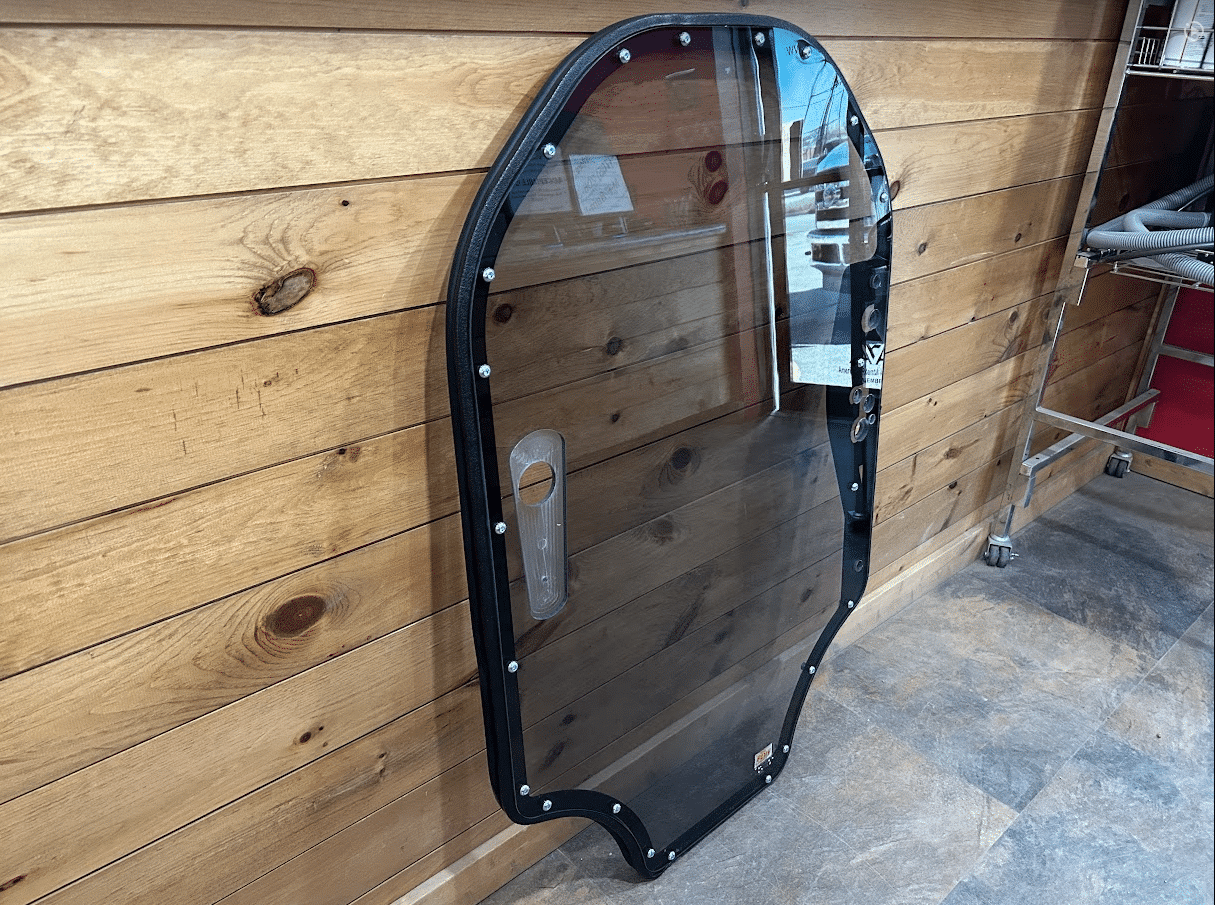

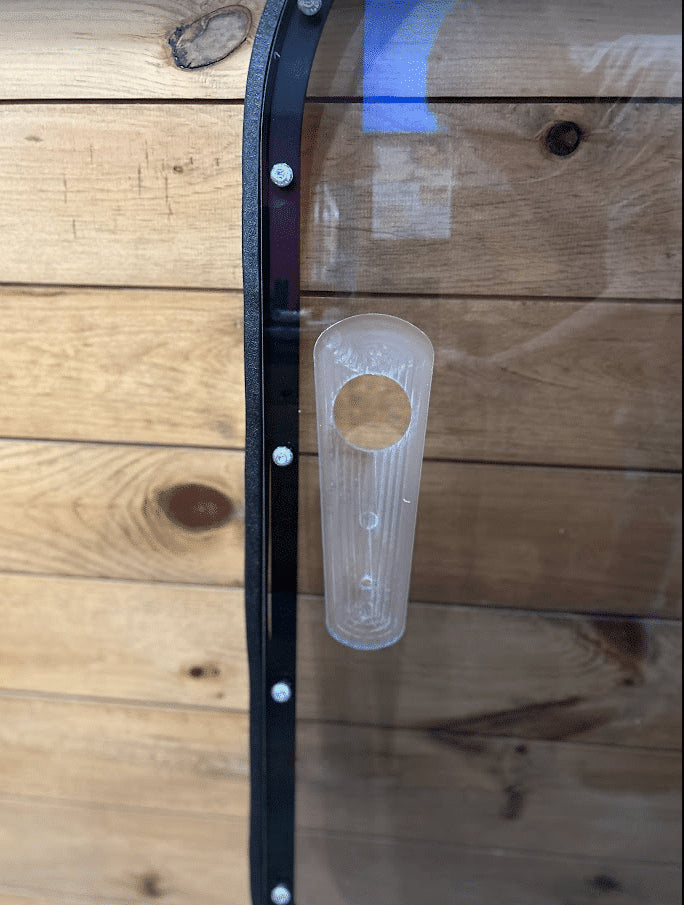

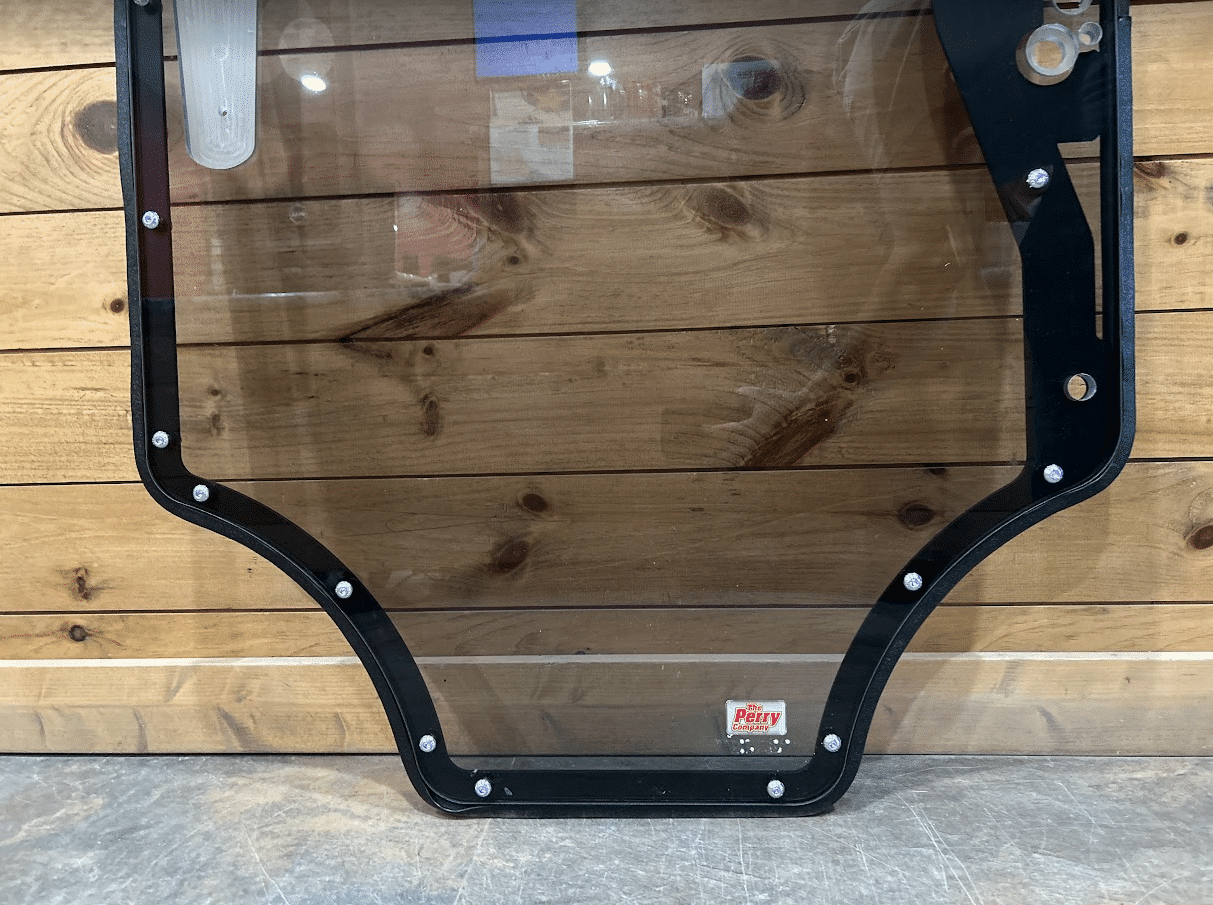

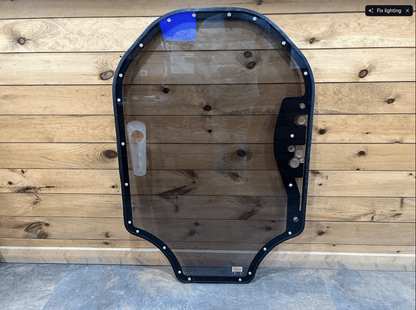

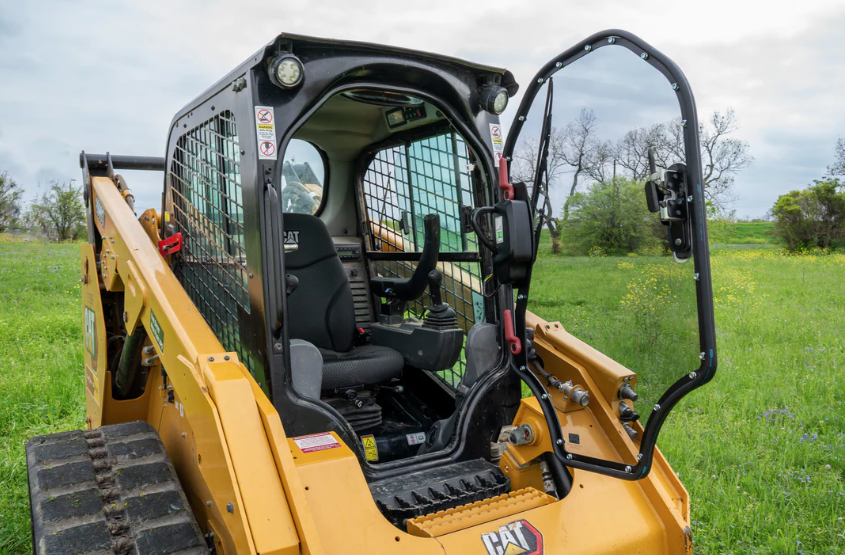

Caterpillar D-Series Heavy-Duty Polycarbonate Door Frame Assembly
Fits CAT Models: 216D, 226D3, 228D, 232D, 232D3, 236D, 236D3, 236DR, 239D, 239D3, 239DR, 242D, 242D3, 242DR, 246D, 246D3, 248D, 249D, 249D3, 252D, 257D, 257D3, 259D, 259D3, 262D, 262D3, 267D, 272D, 272D2, 272D2HXP, 272D3, 272D3XHP, 272DXHP, 277D, 279D, 279D3, 287D, 289D, 289D3, 297D, 297D2, 297D2XHP, 297DXHP, 299D, 299D2, 299D2XHP, 299D3, 299D3XHP, 299DR, 299DXHP
Don't see your model? Additional Caterpillar models may be compatible. Call 765-310-3053 to verify.
REPLACES OEM GLASS #: 345-6230
PACKAGE INCLUDES

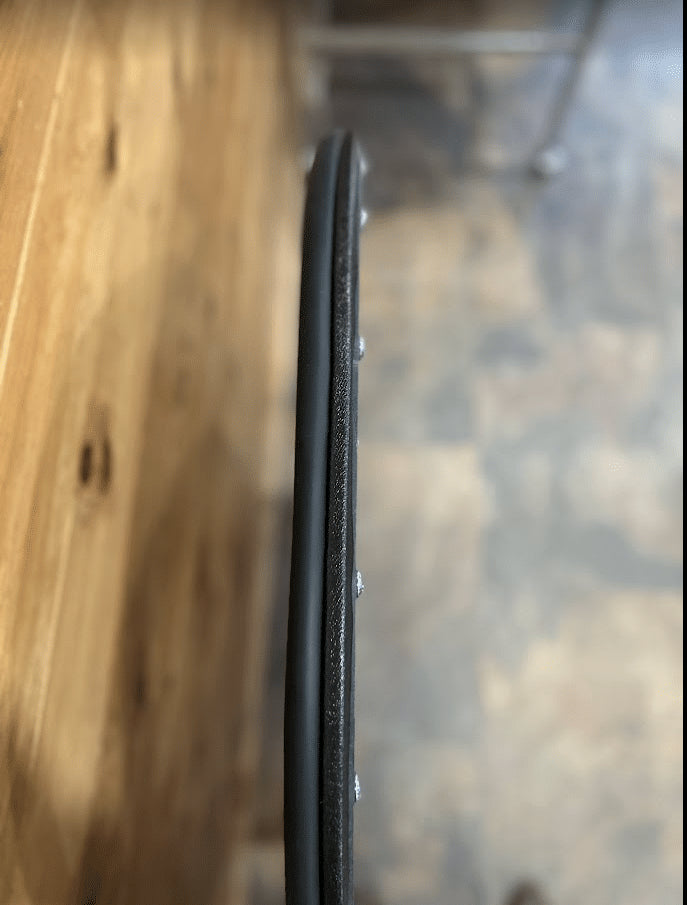

✓ 12-gauge powder-coated steel frame with weather stripping
✓ Steel frame & stiffener bolted to polycarbonate
✓ 1/2" Clear or 50% Tinted Polycarbonate Windshield
✓ Scratch-resistant & UV protectant coating
✓ Supplemental installation hardware kit
IMPORTANT INSTALLATION NOTE:

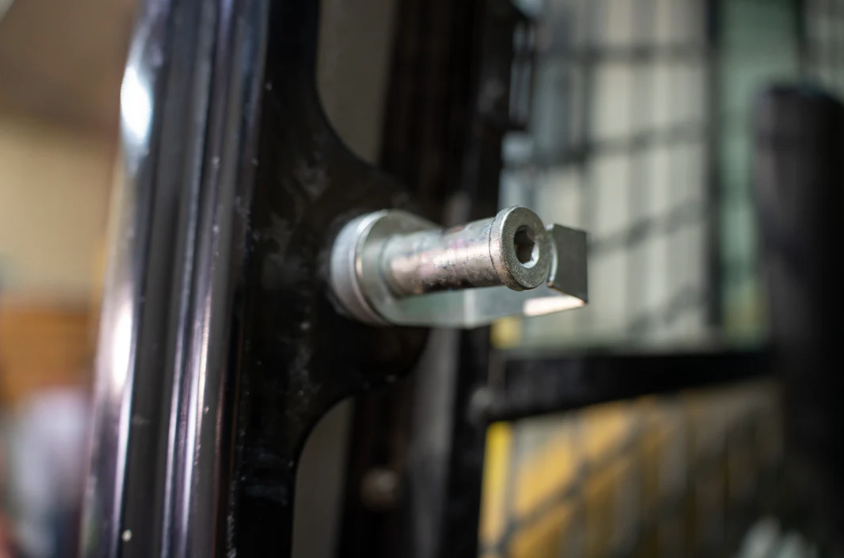

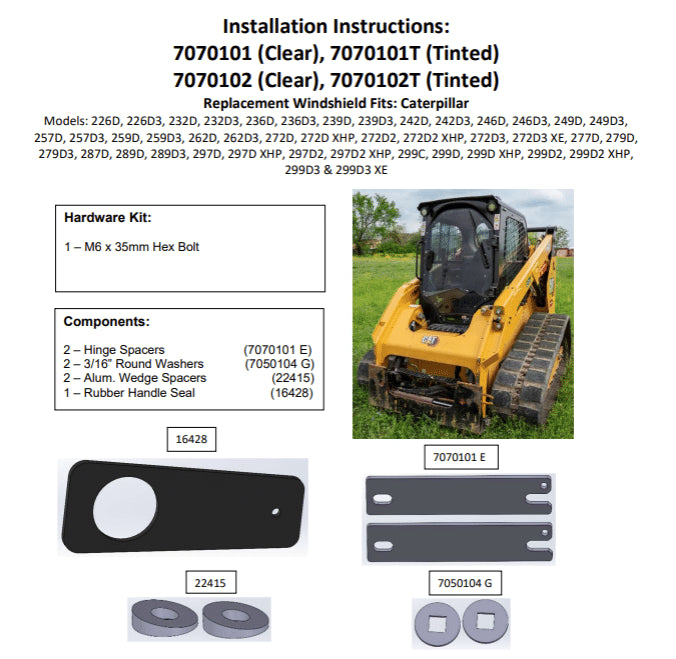

Requires reuse of existing OEM glass door hardware. A supplemental hardware kit is included. See the hardware kit photo or installation guide linked below for details.
Quantity
Regular price $1,189.00 USD
Regular price Sale price $1,189.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Installation
Installation Manual
Step-by-step instructions for installing your Caterpillar D-Series frame and polycarbonate windshield.
Download Installation Manual (PDF)
Format: PDF


Customer Highlight
💥 Real Protection When It Mattered Most

One of our customers experienced a dangerous situation when a blade broke loose from his brush cutter and launched directly toward the cab. Fortunately, his machine was equipped with one of our 1/2" polycarbonate skid steer doors.

The blade struck the door, but the polycarbonate held without shattering or being penetrated. This real-world experience demonstrates the importance of choosing a durable, impact-resistant windshield when operating equipment in demanding conditions.

▶ 🎥 Watch the Actual Impact Footage Click to expand video

Real customer footage demonstrating polycarbonate impact resistance.

  • 5 stars: 0 (0%)
  • 4 stars: 1 (50%)
  • 3 stars: 1 (50%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jamie VanBeek

I like the door. Like the flat vs concave design. Wish the tint was darker and don’t see the point of the frame. Seems to be a strip of metal for looks and not much else. Overall fairly easy to install and looks nice. It’s not shattered in a million pieces like the original door so that’s another plus.

Hi Jamie, thanks for your detailed feedback! We're glad you like the design and found the installation straightforward. We appreciate your thoughts on the tint and frame, and will pass them along for consideration. Enjoy your new door!

A
Andrew Ireland

It is a 1/2in thick polycarbonate and has the frame around it, I like that. The door is just a flat sheet, not contoured like the OE. Had I known this, I would have just bought a blank, 4x6 foot sheet for $200 and cut the holes in myself. Also, the hinge holes were not counter sunk, like the door handle and window wiper mount, requiring that I count sink the holes manually myself. I really expected more for this price point.

Thanks for the feedback — while it may appear similar to a standard flat sheet, the key difference is the material quality and coating. These doors use optical-grade polycarbonate with a hard-coated surface that provides significantly better scratch resistance, UV protection, and long-term clarity — performance you simply can’t get from a raw $200 hardware-store sheet, and it’s not something that can be added after purchase. The flat design is intentional to maintain optical clarity and fit consistency, and while we understand your point on finishing details like countersinking, some of those choices are made to reduce stress points and prevent cracking over time in high-vibration applications.
