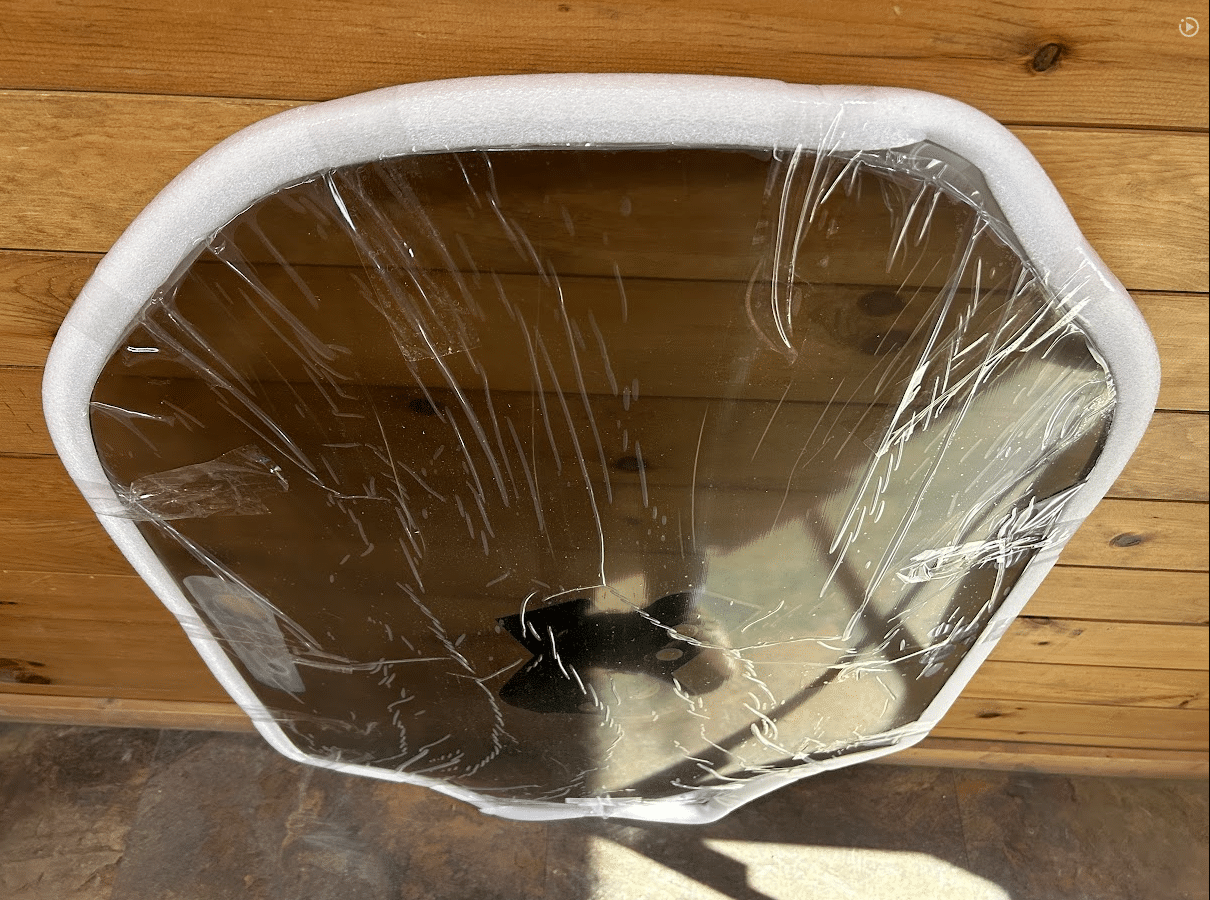

Caterpillar D Series Windshield Replacement Only - Tinted

Caterpillar D Series Windshield Replacement Only - Tinted

Fits the following models:
Caterpillar 216D, 226D3, 228D, 232D, 232D3, 236D, 236D3, 236DR, 239D, 239D3, 239DR, 242D, 242D3, 242DR, 246D, 246D3, 248D, 249D, 249D3, 252D, 257D, 257D3, 259D, 259D3, 262D, 262D3, 267D, 272D, 272D2, 272D2HXP, 272DXHP, 272D3, 272D3XHP, 277D, 279D, 279D3, 287D, 289D, 289D3, 297D, 297DXHP, 297D2, 297D2XHP, 299D, 299D2, 299D3, 299DR, 299DXHP, 299D2XHP, and 299D3XHP skid steers
Note: Some CAT D machines may have CAT C frames. Please verify your door matches the product photos.
Product Details:
  • Replaces OEM Glass #345-6230 for Caterpillar D Series skid steers
  • 50% tinted option available in 1/2″ thickness embedded into polycarbonate
  • Measurements: 9 holes, 790 mm width, 1141 mm height
  • Clear Lexan / polycarbonate is 250× stronger and half the weight of glass
  • Impact-resistant and coated for abrasion resistance
  • Duplicates OEM mounting holes with milled edges for easy installation
  • Improves visibility while reducing noise and heat gain/loss
  • Hardware not included
Quantity
Regular price $1,014.99 USD
Regular price Sale price $1,014.99 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Installation

Installing this polycarbonate door is just like installing OEM glass—no modifications required. Simply align the pre-drilled holes, use your existing hardware, and seal as you would with standard glass. It’s a direct-fit replacement designed for fast, hassle-free installation.

Product Description

Caterpillar D Series Polycarbonate Windshield
Replaces OEM Glass #345-6230

Upgrade your Caterpillar D Series machine with our premium polycarbonate windshield. Engineered as a direct replacement for OEM glass #345-6230, this door delivers unmatched durability, visibility, and ease of installation—all while enhancing operator safety and comfort.

Features

  • Made from high-impact polycarbonate—250x stronger than glass

  • Replaces OEM #345-6230 with 9-hole mounting pattern

  • Dimensions: 790 mm Width x 1141 mm Height

  • Weighs half as much as standard glass

  • Duplicates all OEM mounting holes for easy installation

  • Milled edges simplify seal installation and replacement

  • Coated on both sides for superior abrasion resistance

  • Reduces summer heat absorption and winter heat loss

  • Enhances visibility and light transmission

  • Helps minimize in-cab noise for better operator comfort

Looking to upgrade your Caterpillar D Series skid steer with a safer, stronger, and more comfortable solution? Our tinted polycarbonate replacement door is designed to fit a wide range of CAT D Series models and replaces OEM glass #345-6230. Made from ultra-durable polycarbonate, this door offers 250x the impact resistance of standard glass while weighing half as much. The integrated 50% tint reduces glare, heat absorption, and UV exposure—making it ideal for long hours on the job. Coated on both sides for maximum scratch resistance, it also helps retain cabin heat in winter and stay cooler in summer. With pre-drilled holes that match OEM specs and milled edges for quick sealing, this is the ultimate CAT D Series door upgrade for operators in forestry, construction, or general skid steer applications.

Compatibility

**Fits the following Caterpillar D Series Skid Steer Models:** 216D, 226D3, 228D, 232D, 232D3, 236D, 236D3, 236DR, 239D, 239D3, 239DR, 242D, 242D3, 242DR, 246D, 246D3, 248D, 249D, 249D3, 252D, 257D, 257D3, 259D, 259D3, 262D, 262D3, 267D, 272D, 272D2, 272D2HXP, 272DXHP, 272D3, 272D3XHP, 277D, 279D, 279D3, 287D, 289D, 289D3, 297D, 297DXHP, 297D2, 297D2XHP, 299D, 299D2, 299D3, 299DR, 299DXHP, 299D2XHP, 299D3XHP
*Note: Some CAT D Series machines may be built on CAT C Series frames. Please verify your door shape and mounting hole layout with the photos provided before ordering.*

Warranty

LIMITED WARRANTY

If the windshield/window (i) breaks, (ii) incurs coating failure, (iii) exhibits excessive increased haze, or (iv) exhibits excessive yellowing or loss of light transmission—each within ten (10) years from the date of sale due to manufacturing defect and subject to the definitions and conditions set forth herein—the purchaser will receive a free replacement windshield/window, provided the failed windshield/window, original sales receipt, and this warranty are returned to the original dealer. If a replacement windshield/window cannot be provided within fourteen (14) days, the manufacturer may opt to refund the original windshield/window purchase price.


CONDITIONS

This warranty applies only when the windshield/window is used in flat vertical architectural glazing, excluding transportation, outdoor recreational, and off-road vehicle applications. The product must be cleaned according to recommended guidelines (see reverse side for cleaning instructions). This warranty does not cover (re)installation expenses or any other direct or indirect loss(es) resulting from windshield/window failure.

Breakage: The warranty against breakage applies only to a windshield/window fabricated, installed, and cleaned according to recommendations. The windshield/window is substantially stronger than acrylic and resists impact, abuse, and vandalism. However, no material can be described as unbreakable, as all use cases cannot be accounted for.

Coating Failure: The warranty covers coating failure when the abrasion-resistant surface treatment visibly flakes or loses adhesion to the substrate sheet, detectable without instruments.

Abrasion Resistance: The windshield/window will not exhibit an increase in haze of more than 15%.
Test Criteria: The sample as manufactured shall be abraded per ANSI Z26.1 (Taber Abrader, Test No. 17) for 100 cycles with a 500g load.

Yellowing and Light Transmission: This applies only to clear, transparent windshield/windows.

  • The Yellowness Index (YI) shall be less than 5.0 within five years and less than 10 within ten years from sale date, per ASTM D1925 (1977), as measured with a Gardner Colorimeter.

  • Light transmission loss shall not exceed 5% within five years and 7% within ten years, per ASTM D1003 testing protocols.

  • This warranty does not cover yellowing or light transmission losses due to dirt, atmospheric deposits, abrasion, or physical changes unrelated to material degradation. Regular cleaning reduces, but does not prevent, this effect.

This warranty does not apply to hazing caused by physical abuse or improper cleaning methods.


LIMITATION OF LIABILITY

The warranties stated herein are the only warranties provided and are in lieu of all other warranties—written or oral, statutory, expressed or implied—including any warranty of merchantability or fitness for a particular purpose.

The manufacturer shall not be liable for special, consequential, or incidental damages arising from use or application of the windshield/window, whether the claim is based on warranty, contract, tort, or other legal theory. Liability shall not exceed the original purchase price of the product.

The remedies described are the purchaser’s sole and exclusive remedies.

Features

Key Features:

  • Replaces OEM Glass #345-6230 for Caterpillar D Series Skid Steer
  • Tinted Option: 50% Tint Available in 1/2″ Thickness, Embedded into Polycarbonate
  • Measurements: 9 holes, 790 mm width, 1141 mm height
  • Clear Lexan/Polycarbonate: 250x stronger, half the weight of glass
  • Durable & Safe: Impact-resistant, coated for abrasion resistance
  • Easy Installation: Duplicates OEM mounting holes, milled edges for quick seal replacement
  • Improved Visibility & Thermal Efficiency: Noise-reducing, reduces heat gain/loss
  • Hardware Not Included
